Lightweight Carbon Fibre Power Wheelchair

The Lightweight Carbon Fibre Power Wheelchair simplifies your life with smooth and reliable mobility for home, travel, or shopping. It has a lightweight and easy to fold design ensures easy storage and transport. It has a powerful motor that can handle rough paths and slopes. Its electric brakes and remote control gives you more safety and comfort. Whether you are grocery shopping, exploring the city, or travelling to visit your loved one, this wheelchair keeps you independent and fully engaged with the activities that you enjoy. This wheelchair follows the Airline- specific requirements.

Rental Enquiry – $85/Week

$3,500.00

After a Stroke
Hip & Knee Care
Living with Arthritis
Carer’s Support
Elderly with Mobility Needs
  • Folds easily into a compact size for convenient storage and transport.
  • Lightweight carbon fibre frame weighing just 11.5 kg for easy handling.
  • Powered by a 150W brushless motor for smooth operation and durability.
  • Quick-release lithium batteries provide a long driving range and easy recharging.
  • 360 joystick controller with speed control and horn.
  • Electronic braking systems ensure instant stopping for enhanced safety.
  • Supports up to 140 kg with its durable carbon fibre construction.
  • Stylish design with magnesium alloy wheels for stability and a modern look.



Product CodeCWU-ATH-LCFW
Frame MaterialFully Carbon Fibre
Motor150W Brushless motor (Follows Airline-specific Requirements)
Battery6Ah 24V
Controller360° Joystick
Charging time 6-8 hours
Max Loading140KG
Speed0-6 km/h
Turning Radius90cm
Climbing Ability≤10°
Driving Distance>10 km
Seat (Width*Length)46 *42 cm
Backrest (Height* Width)42 *46 cm
Front & Rear Wheel6.5" & 11" (inch) Solid Tires
Size(Unfolded-L*W*H)91cm * 61cm * 89cm
Size(Folded-L*W*H)73cm * 31cm * 71cm
 Warranty 1 Year Including Battery
G.W.(with package)17Kg
N.W11.5Kg
CertificationsTGA Certified

Frequently Asked Questions (FAQ)

1. Turning Off/On the Reverse Beep Sound

To turn off the reverse beep sound, follow these steps:

  1. Turn on the wheelchair.
  2. Press and hold the horn button and the speed decrease button simultaneously for 30 seconds.
  3. Test by reversing the wheelchair.
  4. To confirm, turn off the wheelchair, turn it back on, and reverse again to ensure the sound is off.

To activate the beep sound again:

  1. Turn on the wheelchair.
  2. Press and hold the horn button and the speed increase button simultaneously for 30 seconds.
  3. The sound will activate when you reverse.

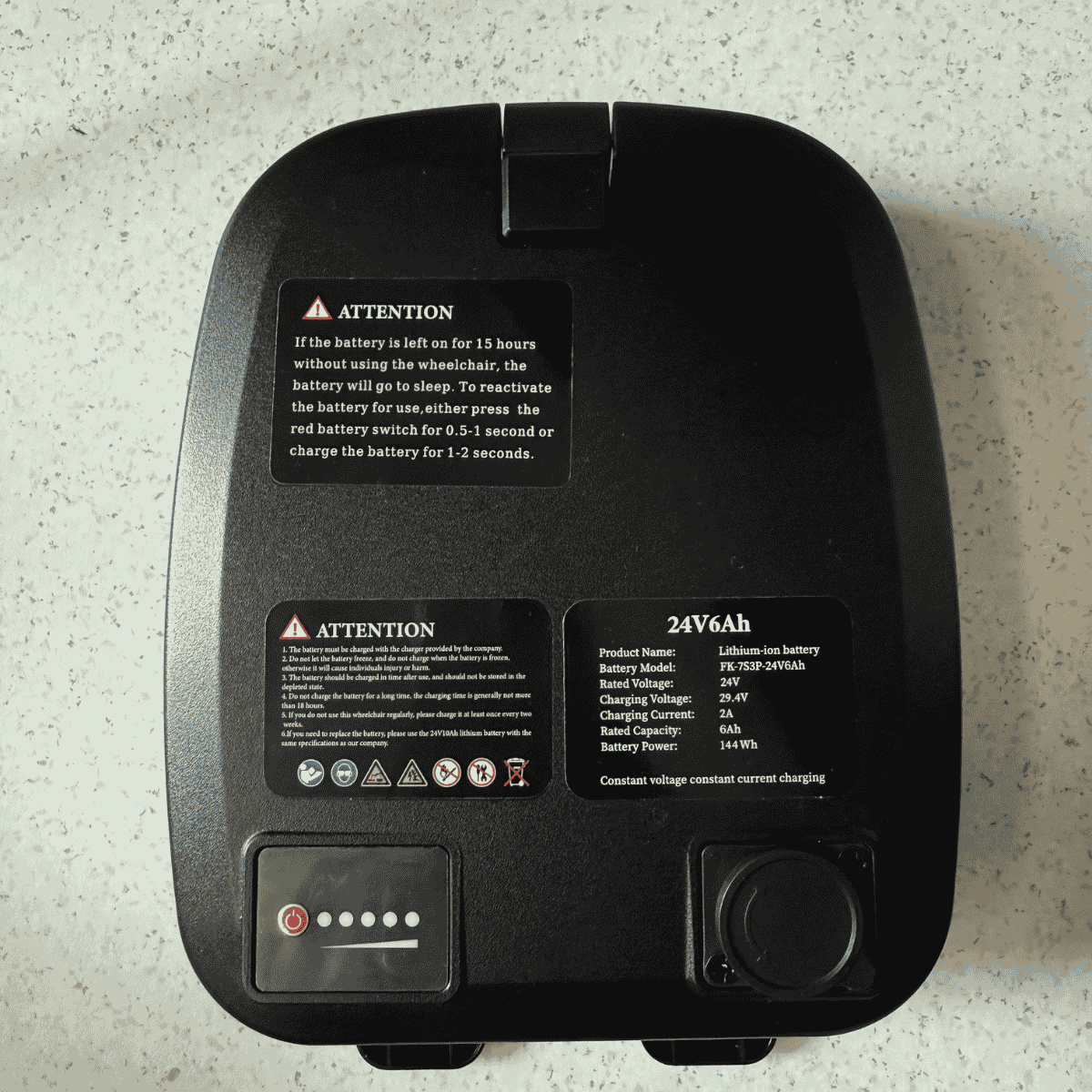

2. Battery Usage, Charging, and Maintenance

Always remove the battery if the wheelchair won’t be used for more than five hours.

If the battery remains idle for over 15 hours, it may enter sleep mode.

Reactivate it by pressing the red button for 0.5–1 second, or briefly connect it to the charger.

  • Always switch off the wheelchair before charging.
  • Charge the battery directly at the charging point or via the joystick.
  • Avoid charging overnight. Remove the charger when the LED indicator turns green.

Charge the battery at least once every two weeks to maintain its performance.

Press the red button on the battery or turn on the wheelchair.

Both have a 5-light indicator:

  • Five lights indicate a full charge.
  • One red light signals it’s time to recharge.

3. Folding and Handling the Wheelchair for Transport

Avoid lifting it by the bar under the armrest to prevent damage.

Instead, lift using the black handles or the wheelchair frame.

  • Always switch off the wheelchair before charging.
  • Charge the battery directly at the charging point or via the joystick.
  • Avoid charging overnight. Remove the charger when the LED indicator turns green.

Charge the battery at least once every two weeks to maintain its performance.

4. Installing the Cushion and Seatbelt

No, for optimal comfort, always remove the original cushion before installing a new one.

  • Lay the wheelchair with the battery facing upward.
  • Don’t stack items on top.
  • For vertical placement in a car, remove the battery to balance the weight and prevent sliding.

Switch the wheelchair to electric mode to prevent it from rolling while being transported.

5. Adjusting Joystick Length

  1. Loosen the wire connected to the joystick.
  2. Unscrew the knob to adjust the length as desired.
  3. Tighten the screw and secure the wire once adjustments are complete.

6. Installing Shopping Bag Hooks

  1. Undo the strap on the hook.
  2. Place it on the desired spot on the armrest.
  3. Tighten the strap securely.

The hooks can support up to 2 kilograms.

They are also rotatable for added convenience.

7. Installing the Wheelchair Table

  1. Remove the joystick and hang it on the side or back of the wheelchair. Avoid placing it in the back pocket to prevent damage.
  2. Undo the table strap.
  3. Position the table in the desired location and tighten the strap securely.
